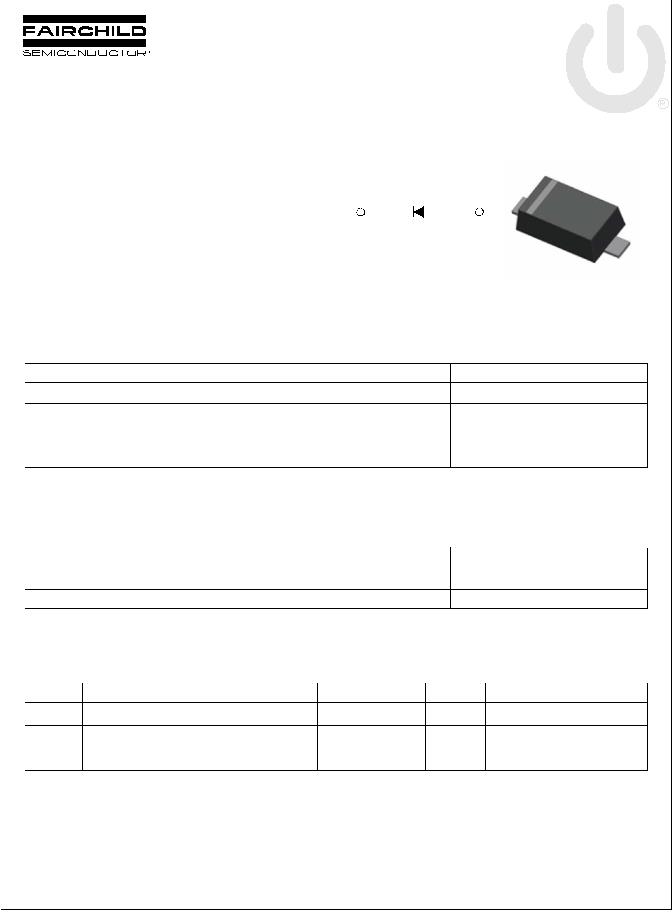

 RB520S30 — Schottky Barrier Diodes ? 2009 Fairchild Semiconductor Corporation www.fairchildsemi.com RB520S30 Rev. A2 1 September 2009 RB520S30 Schottky Barrier Diodes Features ? Low Forward Voltage Drop ? Flat Lead, Surface Mount Device Under 0.70mm Height ? Extremely Small Outline Plastic Package SOD523F ? Moisture Level Sensitivity 1 ? Pb-free Version and RoHS Compliant ? Matte Tin (Sn) Lead Finish ? Green Mold Compound Absolute Maximum Ratings * TA=25°C unless otherwise noted * These ratings are limiting values above which the serviceability of any semiconductor device may be impaired. Thermal Characteristics * Device mounted on FR-4 PCB minimum land pad. Electrical Characteristics TA=25°C unless otherwise noted Symbol Parameter Value Units VRRM Maximum Repetitive Reverse Voltage 30 V IF(AV) Average Rectified Forward Current 200 mA TJ Operating Junction Temperature Range -55 to +125 °C TSTG Storage Temperature Range -55 to +125 °C Symbol Parameter Value Units PD Total Device Dissipation (TC=25°C) 200 mW RθJA Thermal Resistance, Junction to Ambient 500 °C/W Symbol Parameter Test Condition Min. Typ. Max. Units BVR Breakdown Voltage IR=500μA 30 V IR Reverse Leakage Current VR=10V 1 μA VF Forward Voltage IF=200mA 0.6 V SOD-523F RB520S30 Marking : 1B Band Indicates Cathode Cathode ELECTRICAL SYMBOL Anode |
